For which companies is the Axium RX5000 Pinpad suitable?

The Axium RX5000 Pinpad is particularly suitable for retail environments with high customer flow. However, horeca, hospital and healthcare sectors as well as entertainment promoters can also benefit from the comprehensive features of the POS integrated terminal. For questions and a customised quote tailored to your needs, please contact our sales team.

Does the device support EMV, NFC, magnetic cards, and QR codes?

The Axium RX5000 Pinpad from Worldline supports EMV chip cards and magnetic stripe cards. Contactless payments (NFC payments) can also be accepted. Depending on integration, QR codes are also supported. For further questions about the payment terminal, please contact our sales team.

Can the Axium RX5000 Pinpad be integrated into kiosks or self-checkout environments?

Yes, the Axium RX5000 Pinpad is suitable for kiosk and semi-attended integration, provided that the POS or kiosk software offers appropriate interfaces and hardware compatibility is ensured. For detailed questions, please contact our sales team.

What security features does the payment device offer?

The rugged Pinpad for demanding environments is equipped with comprehensive security features. It offers PCI-compliant encryption of card data and also features a privacy-shield on the pinpad for secure PIN entry. Regular firmware updates ensure additional transaction security. For more questions regarding security features, please contact our sales team.

Is the keypad ergonomically designed for quick PIN entry?

The reliable keypad of the Axium RX5000 Pinpad is ergonomically designed, illuminated, and enables fast and easy PIN entries through its clear digit arrangement. For further technical details, please contact our sales team.

Is the Axium RX5000 Pinpad suitable for continuous operation in retail?

The Axium RX5000 Pinpad is robust and built for reliable continuous operation during intensive use, as is typical seen in retail. This high-performance Pinpad for checkout lanes is therefore perfect for demanding environments. For other questions, please contact our sales team.

Axium RX5000 Pinpad terminal

The Axium RX5000 Pinpad payment terminal with privacy shield for secure PIN entry is an integrated terminal that allows you to maintain a smooth workflow even when the checkout line gets longer. Thanks to its powerful processor, transactions are processed instantly.

Get offer now Discover Axium RX5000 Pinpad

Axium RX5000 Pinpad

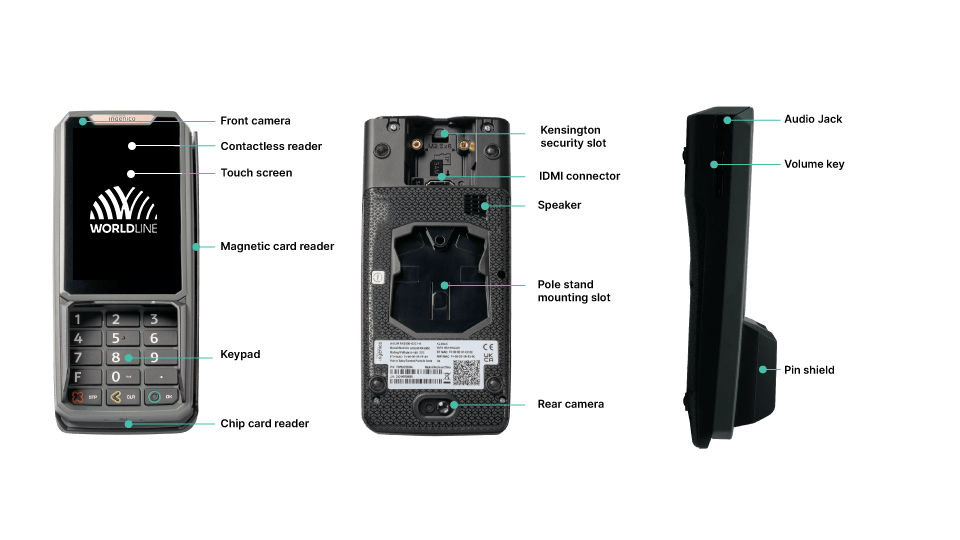

The POS integrated terminal features a touchscreen display and a physical keyboard and can easily be mounted on a stand. This way, it is well suited for fixed checkout environments where counter space is limited. The Android user interface ensures a particularly simple and intuitive user experience for your customers.

Specifications at a glance

DIM (L × W × H)	177 x 80 x 22,5 mm
Weight	227 g
Communication	Ethernet
Power supply	External power supply
Display (pixel)	Colour touch display (480 x 800)
Screen size	4"
Printer/ Speaker/ Audio jack	No / Yes / Yes
Security certificate	PCI PTS 6.x
Operating system	Android 11.0
Card reader	Contactless / EMV chip / Magnetic stripe

Technical deep dive: Axium RX5000 Pinpad features

Designed for high-volume environments, the Pinpad terminal accepts all common payment methods.

Cashless payments for every industry

The powerful processor of the Axium RX5000 Pinpad processes transactions at the highest speed, reducing wait times at the checkout. As a secure terminal for PIN entry and payment processing, it is ideal for a variety of sectors, such as:

Retail

Fast food restaurants and cafes

Hotels and reception areas

Event and entertainment

Authorities and public services

And many more ...

Axium RX5000 Pinpad in daily use

Easy integration into your existing cash register system

Fast transaction processing at the POS

Practical pin shield for secure PIN entry

Our integrated POS devices compared

	Axium RX5000 Pinpad	Axium DX8000 Portable Pinpad	Saturn 1000P Pinpad
Device type	Fixed	Portable	Fixed
DIM (L × W × H)	177 x 80 x 22,5 mm	198 × 83 × 62,5 mm	189,2 x 83,9 x 49,4 mm
Weight	227 g	441 g	362 g
Communication	Ethernet	Wi-Fi	Ethernet
Power supply	External power supply	Li-ion-battery (3350 mAh / 7,2 V, 24,12 Wh) / USB-C charging port / Charging station with external power supply	External power supply
Display (pixels)	Colour touch display  480 x 800	Colour touch display  1440 × 720	Colour touch display  480 x 800
Screen size	4"	6"	4"
Printer	-	Yes	-
Speaker	Yes	Yes	Yes
Audio jack	Yes	Yes	-
Security certificate	PCI PTS 6.x	PCI PTS 6.x	PCI PTS 6.x
Cash register connection	TIM	TIM	TIM
Operating system	Android 11.0	Android 10.0	Android 10.0
Card reader	Contactless  EMV chip  Magnetic stripe	Contactless  EMV chip  Magnetic stripe	Contactless  EMV chip  Magnetic stripe
Accessories	Mounting station (recommended)  PoE option (Power over Ethernet) available	Charging station	Mounting station PoE option (Power over Ethernet) available
Environmental conditions	Operating temperature: –10 °C to 50 °C  Storage temperature: –20 °C bis 70 °C  Operating humidity 10% to 90%,  non-condensing	Operating temperature: –10 °C to 50 °C  Storage temperature: –20 °C bis 70 °C  Operating humidity 10% to 90%,  non-condensing	Operating temperature: –10 °C to 50 °C  Storage temperature: –20 °C bis 70 °C  Operating humidity 10% to 90%,  non-condensing
		Check Axium DX8000 Portable Pinpad	Check Saturn 1000P Pinpad

Downloadable Resources Axium RX5000 Pinpad

Axium RX5000 Pinpad – Factsheet

Questions and answers about the Axium RX5000 Pinpad payment terminal

Learn everything about the rugged Axium RX5000 Pinpad designed for demanding environments like retail or horeca, as well as other technical details and features.

The Axium RX5000 Pinpad is particularly suitable for retail environments with high customer flow. However, horeca, hospital and healthcare sectors as well as entertainment promoters can also benefit from the comprehensive features of the POS integrated terminal. For questions and a customised quote tailored to your needs, please contact our sales team.
The Axium RX5000 Pinpad from Worldline supports EMV chip cards and magnetic stripe cards. Contactless payments (NFC payments) can also be accepted. Depending on integration, QR codes are also supported. For further questions about the payment terminal, please contact our sales team.
Yes, the Axium RX5000 Pinpad is suitable for kiosk and semi-attended integration, provided that the POS or kiosk software offers appropriate interfaces and hardware compatibility is ensured. For detailed questions, please contact our sales team.
The rugged Pinpad for demanding environments is equipped with comprehensive security features. It offers PCI-compliant encryption of card data and also features a privacy-shield on the pinpad for secure PIN entry. Regular firmware updates ensure additional transaction security. For more questions regarding security features, please contact our sales team.
The reliable keypad of the Axium RX5000 Pinpad is ergonomically designed, illuminated, and enables fast and easy PIN entries through its clear digit arrangement. For further technical details, please contact our sales team.
The Axium RX5000 Pinpad is robust and built for reliable continuous operation during intensive use, as is typical seen in retail. This high-performance Pinpad for checkout lanes is therefore perfect for demanding environments. For other questions, please contact our sales team.
