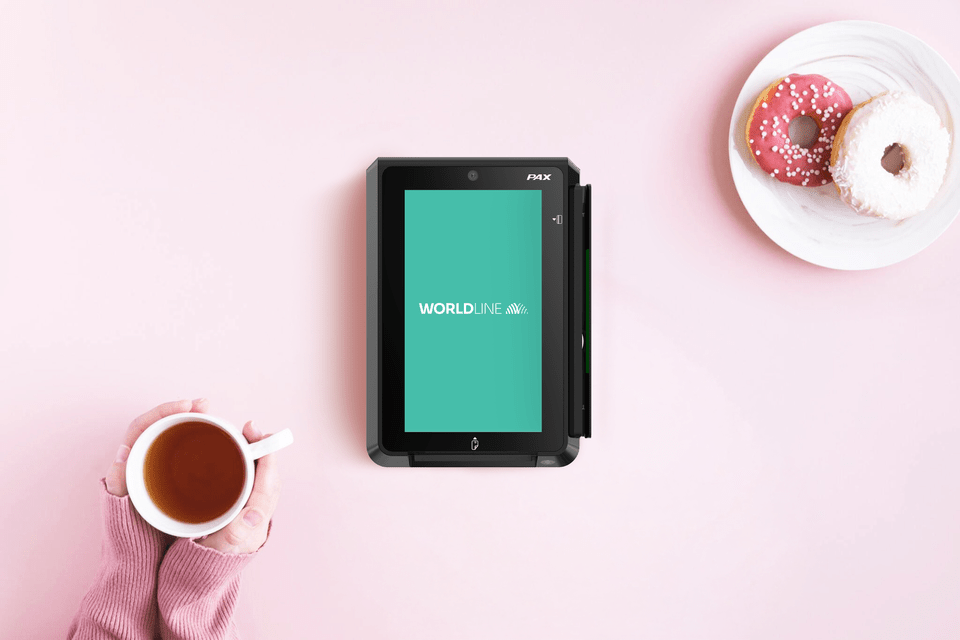

Axium DX8000 payment terminal

IM30

Seamless connectivity. Unstoppable performance

Contact us

Simple payments with IM30

The IM30 is a full-featured Android SmartPOS designed for unattended, self-service solutions. Multiple connectivity options and support for any payment method maximize sales potential while delivering robust security and environmental durability. Ideal for self-service kiosks, EV charging, transportation, ticketing, and high-traffic retail environments.

Reliable and intuitive

A bright 5" HD touchscreen and a rugged IP65/IK09 housing ensure excellent usability and durability in indoor and outdoor installations. The Android platform supports rich interfaces for modern self-service experiences.

Flexible payment acceptance

Supports all major payment methods — including cards, contactless, and mobile wallets — to meet customer expectations with ease.

Connectivity where it matters

Multiple connectivity: Ethernet, Wi-Fi, Bluetooth, USB, and RS232, MDB slave, MDB Master, Digital I/O, HDMI, SMA, 4G (Optional).

Secure by design

Built to industry security standards with strong encryption and EMV certification, ensuring every transaction is protected.

Technical specification IM30

  • Operating System: PayDroid Powered by Android
  • Processor: Quad – core  ARM Cortex A53 1.6GHz
  • Memory: 8GB Flash + 2GB LPDDR4 RAM
  • Card Readers: Magnetic stripe, Contactless, Chip & PIN
  • Code Readers: 2 MP, Reads 1D & 2D Codes
  • Cameras: 2MP Front - Facing
  • Security Certification: PCI PTS 6.x compliant for trusted transaction security
  • Display: 5 TFT 720 x 1280, IPS
  • Network Options: LAN + WiFi + Bluetooth + 4G
  • Power: 7V -48 DC via MDB slave or RS232 or Digital I/O 24 V DC via JVMA
  • Ports: 2 RS232, 1 USB Host, 1 USB OTG, 1 LAN, 1 MDB Slave, 1 HDMI, 1 Diital I/Os, 1 Mic & Speaker, 1 MDB Master
  • Operating Temperature: -20°C ~ 70°C
  • Size: External Dimension: 105 x 146 x 47mm, Installation Cutout: 82 x 107mm

Questions and answers

  • You should call to Worldline Customer Service Desk: Latvia - +371 67092539

  • You can on see reject reason on bank receipt, if there are any additional questions you should call to Worldline Customer Service Desk: Latvia - +371 67092539.

  • To properly disinfect the electronic card reader, use only wipes moistened with ethanol (70-85%) and water.

  • POS terminals paper size is 57x40.

  • Fully charged POS terminal battery can work all day and can accept 200+ transactions.

  • Bank terminals accept variuos method of payments: Magnet, Chip, Contactless.

  • In Baltic states Worldline terminals working with different banks such as LUMINOR, CITADELE, SEB, Swedbank.

  • Usually, bank transfers money for transaction next day after business day closure in POS terminal.

  • You should contact your bank and order additional terminal.

  • You can use audit function in POS terminal. More details you can find in user manual.

  • Yes, Worldline offers such solution. For more details you should contact Worldline sales team - sales.lv@worldline.com.
