What is Worldline’s Saturn 1000P Pinpad integrated payment terminal and who is it best suited for?

Worldline’s Saturn 1000P Pinpad is an integrated payment terminal that connects to an electronic cash register (ECR) or POS system. It is best suited for retail, hospitality and service businesses with fixed checkout counters, where secure customer PIN entry is required within the Worldline payment environment.

What are the key features of the Saturn 1000P Pinpad integrated payment terminal?

The Saturn 1000P Pinpad features a colour touchscreen combined with a physical PIN keypad. It supports EMV chip, contactless and magnetic stripe payments, and runs on an Android-based platform. It is certified to PCI PTS 6.x and designed for reliable, high-volume integrated payment acceptance.

Is the Saturn 1000P Pinpad a good entry-level integrated payment terminal for new merchants?

Yes. The Saturn 1000P Pinpad is well suited as an entry-level integrated payment terminal for new merchants and established retailers, including large stores and franchise networks. Its standardised integration and clear customer flow make it easy to deploy, from single-site businesses to multi-lane checkout environments.

How does the Saturn 1000P Pinpad support efficient checkout payments?

By separating cashier operations on the POS from customer PIN entry on the terminal, the Saturn 1000P Pinpad supports faster checkout and reduces handling errors. This setup is well suited for high-throughput retail and hospitality counters where speed and reliability are critical.

What payment methods are accepted on the Saturn 1000P Pinpad terminal?

The Saturn 1000P Pinpad accepts EMV chip cards, magnetic stripe cards and contactless payments, including e-wallets such as Apple Pay and Google Pay, subject to acquiring configuration. This ensures broad coverage of modern cashless payment methods.

What are the rates and monthly fees for the Saturn 1000P Pinpad integrated payment terminal?

Pricing depends on the commercial model, service package and acquiring configuration. Worldline offers rental and purchase options for integrated payment terminals, with additional services available depending on business needs. For exact pricing, please contact our sales team.

Can the Saturn 1000P Pinpad be combined with other Worldline payment terminals?

Yes. The Saturn 1000P Pinpad can be deployed alongside other Worldline payment terminals, allowing businesses to support multiple checkout scenarios while maintaining a consistent payment setup within the Worldline portfolio.

What kind of support is available for businesses using the Saturn 1000P Pinpad?

Worldline offers terminal support, maintenance services and software updates, depending on the selected service level. These services help ensure the Saturn 1000P Pinpad remains compliant, secure and operational within the Worldline acquiring environment. To learn more about our support packages, please visit our website.

How does the Saturn 1000P Pinpad compare to other integrated payment terminals?

Compared to basic integrated payment terminals, Worldline’s Saturn 1000P Pinpad offers a modern touchscreen interface, Android-based architecture and PCI PTS 6.x certification. It is a reliable, future-ready choice for merchants looking for an integrated payment terminal for fixed checkout use.

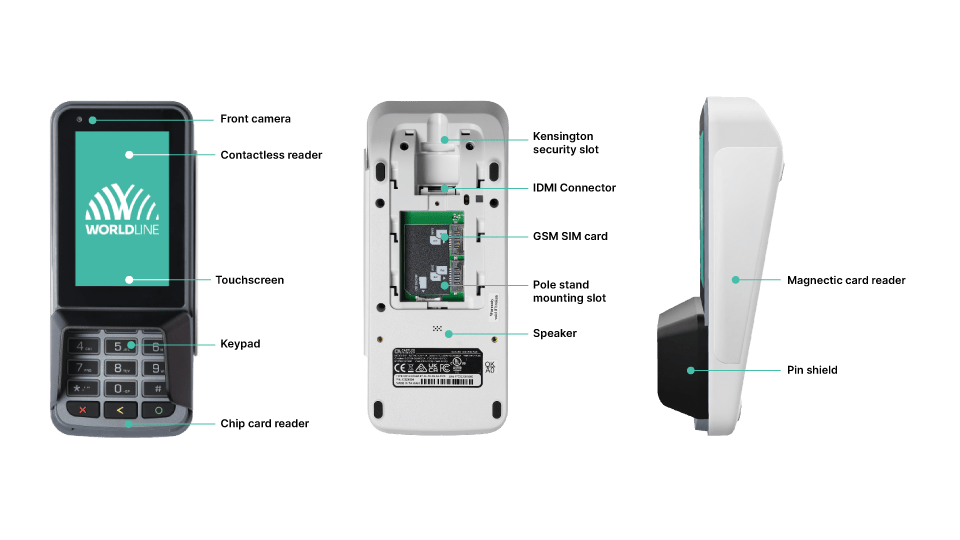

Saturn 1000P Pinpad

Integrated customer-facing PIN pad for fixed POS checkout lanes. The Saturn 1000P Pinpad supports EMV and contactless payments with secure PIN entry for retail and service environments.

Order now Explore Saturn 1000P features

Saturn 1000P Pinpad - technical overview

The Saturn 1000P Pinpad is engineered to handle high transaction volumes in fast-paced environments. Payment is initiated on the POS or ECR, with the customer completing PIN entry and payment on the device. The PIN pad operates as part of a fixed, integrated checkout setup and does not support mobile or standalone payment use cases.

Specifications at a glance

Dimensions (W × H × D)	189.2 x 83.9 x 49.4 mm
Weight	362 g
Display	4" colour touchscreen (480 × 800)
Keypad	Physical PIN entry keypad (customer facing)
Operating system	Android 10.0
Connectivity	Ethernet (primary) for POS integration
Card readers	Contactless (NFC) / EMV chip / Magnetic stripe
Printer	None (designed for integration)
Speaker	Yes
Security certificate	PCI PTS 6.x
Cash register connection	VIA TIM Server / API integration
Power supply	DC 12 V/1 A
Environmental conditions	0–50 °C operating, –20–70 °C storage

Technical deep dive

The Saturn 1000P Pinpad is a compact fixed Pinpad terminal designed to sit directly at fixed checkout counters, enabling secure customer payment interaction alongside a separate POS system.

Supported payment methods

Accept debit cards, credit cards, gift cards, local payment methods such as TWINT, REKA, boncard or WIR as well as e-wallets.

Tailored for your industry

The Saturn 1000P Pinpad suits any fixed checkout where a dedicated PIN entry device is required:

Retail

Supermarkets, fashion stores, electronics outlets

Hospitality

Cafés, quick-service counters

Healthcare

Pharmacies, clinics

Services

Salons, leisure venues

See the Saturn 1000P Pinpad in action

Countertop integration

Physical PIN keypad

Android OS

Comparison table

	Saturn 1000P Pinpad	Axium EX8000 Portable Pinpad	Axium DX8000 Portable Pinpad	Axium RX5000 Pinpad	Saturn 1000F2 Portable Pinpad	Link/2500 Portable Pinpad	Lane/5000 Pinpad
DIM (L × W× H)	189.2 x 83.9 x 49.4 mm	170 × 80.6 × 19 mm	198 × 83 × 62.5 mm	177 x 80 x 22.5 mm	203.9 × 80 × 55.9 mm	129 x 70 x 17 mm	189 x 11 x 48 mm
Weight	362 g	290 g	441 g	227 g	495 g	155 g	350 g
Communication	LAN, Wi-Fi	Wi-Fi	Wi-Fi	LAN, Wi-Fi	Wi-Fi	Bluetooth, Wi-Fi	LAN
Power supply	DC 12V/1A	Li-ion-battery (4040 mAh) USB-C charging port	Li-ion-battery (3350 mAh / 7.2 V, 24.12 Wh) USB-C charging port	External power supply	Li-ion-battery	5V 1A, USB C (1.5 m)	External power supply
Display (pixel)	Colour touch display 480 x 800	Colour touch display 1440 x 720	Colour touch display 1440 × 720	Colour touch display 480 x 800	Colour touch display 1280 × 720	Colour display 240 x 320	Touch display 480 x 320
Screen size	4"	6"	6"	4"	5,5"	2,4"	3,5"
Printer	-	-	Yes	-	Yes	-	-
Speaker	Yes	Yes	Yes	Yes	Yes	-	-
Audio jack	-	Yes	Yes	Yes	Yes	-	-
Security certificate	PCI PTS 6.x	PCI PTS 6.x	PCI PTS 6.x	PCI PTS 6.x	PCI PTS 6.x	PCI PTS 5.x	PCI PTS 5.x
Cash register connection	TIM	TIM	TIM	TIM	TIM	TIM	TIM
Operating system	Android 10.0	Android 10.0	Android 10.0	Android 11.0	Android 9.0	-	-
Card reader	EMV chip Magnetic stripe Contactless	EMV chip Magnetic stripe Contactless	EMV chip Magnetic stripe Contactless	EMV chip Magnetic stripe Contactless	EMV chip Magnetic stripe Contactless	EMV chip Magnetic stripe Contactless	EMV chip Magnetic stripe Contactless
Accessories	Mounting station (SpacePole®)	Charging station	Charging station/ Charging station with communication module	Mounting station (required) PoE option (Power over Ethernet) available	Charging station	-	-
Environmental conditions	Operating temperature: –10 °C to 50 °C Storage temperature: –20 °C bis 70 °C Operating humidity 10% to 90%, non-condensing	Operating temperature: –10 °C to 50 °C Storage temperature: –20 °C bis 70 °C Operating humidity 10% to 90%, non-condensing	Operating temperature: –10 °C to 50 °C Storage temperature: –20 °C bis 70 °C Operating humidity 10% to 90%, non-condensing	Operating temperature: –10 °C to 50 °C Storage temperature: –20 °C bis 70 °C Operating humidity 10% to 90%, non-condensing	Operating temperature: –10 °C to 50 °C Storage temperature: –20 °C bis 70 °C Operating humidity 10% to 90%, non-condensing	Operating temperature: –10 °C to 50 °C Storage temperature: –20 °C bis 70 °C Operating humidity 10% to 90%, non-condensing	Operating temperature: –10 °C to 50 °C Storage temperature: –20 °C bis 70 °C Operating humidity 10% to 90%, non-condensing
		Check Axium EX8000 Portable Pinpad	Check Axium DX8000 Portable Pinpad	Check Axium RX5000 Pinpad	Check Saturn 1000F2 Portable Pinpad	Check Link/2500 Portable Pinpad	Check Lane/5000 Pinpad

Further Downloads

Saturn 1000P Pinpad - Factsheet

Your guide to the Saturn 1000P Pinpad terminal

Here you will find answers to questions about technical specifications, key features, and additional services for ECR integrated merchants.

Worldline’s Saturn 1000P Pinpad is an integrated payment terminal that connects to an electronic cash register (ECR) or POS system. It is best suited for retail, hospitality and service businesses with fixed checkout counters, where secure customer PIN entry is required within the Worldline payment environment.
The Saturn 1000P Pinpad features a colour touchscreen combined with a physical PIN keypad. It supports EMV chip, contactless and magnetic stripe payments, and runs on an Android-based platform. It is certified to PCI PTS 6.x and designed for reliable, high-volume integrated payment acceptance.
Yes. The Saturn 1000P Pinpad is well suited as an entry-level integrated payment terminal for new merchants and established retailers, including large stores and franchise networks. Its standardised integration and clear customer flow make it easy to deploy, from single-site businesses to multi-lane checkout environments.
By separating cashier operations on the POS from customer PIN entry on the terminal, the Saturn 1000P Pinpad supports faster checkout and reduces handling errors. This setup is well suited for high-throughput retail and hospitality counters where speed and reliability are critical.
The Saturn 1000P Pinpad accepts EMV chip cards, magnetic stripe cards and contactless payments, including e-wallets such as Apple Pay and Google Pay, subject to acquiring configuration. This ensures broad coverage of modern cashless payment methods.
Pricing depends on the commercial model, service package and acquiring configuration. Worldline offers rental and purchase options for integrated payment terminals, with additional services available depending on business needs. For exact pricing, please contact our sales team.
Yes. The Saturn 1000P Pinpad can be deployed alongside other Worldline payment terminals, allowing businesses to support multiple checkout scenarios while maintaining a consistent payment setup within the Worldline portfolio.
Worldline offers terminal support, maintenance services and software updates, depending on the selected service level. These services help ensure the Saturn 1000P Pinpad remains compliant, secure and operational within the Worldline acquiring environment. To learn more about our support packages, please visit our website.
Compared to basic integrated payment terminals, Worldline’s Saturn 1000P Pinpad offers a modern touchscreen interface, Android-based architecture and PCI PTS 6.x certification. It is a reliable, future-ready choice for merchants looking for an integrated payment terminal for fixed checkout use.
