Integrated payment terminals

Integrated payment terminals

Discover our integrated payment terminals that connect seamlessly with your cash register system, ensuring maximum efficiency even during high customer traffic.

Find your ideal integrated payment terminal Buy terminal

Why should you choose an integrated payment solution from Worldline?

Seamless payment integration

With minimal effort, our POS integrated terminals can be connected to your existing checkout system. The simple and intuitive interface (API) ensures quick implementation.

All-in-one cash register payment solutions

Transactions are fully automated and initiated directly from your electronic cash register (ECR), removing the need for any manual input on the terminal.

Modern integrated experience

Our powerful cash register integrated payment terminals for retail include POS devices with contactless NFC technology, EMV chip, and magnetic stripe readers.

Our POS integrated terminals

Axium EX8000

Axium EX8000 Portable Pinpad integrated payment terminal

The lightweight Android payment terminal

  • Easy integration into your existing cash register system
  • Smartphone-like operation for intuitive handling
  • Powered by Android OS
  • Contactless (NFC), chip, and magnetic stripe reader




Ideal for: retail stores, restaurants, and hospitality businesses looking for a lightweight and portable payment terminal.

Explore Axium EX8000 Portable Pinpad

Axium DX8000

Axium DX8000 Portable Pinpad integrated payment terminal

The reliable Android payment terminal


  • Secure payment terminal for mobile use
  • Strong battery life, ideal for businesses with high transaction volumes
  • Powered by Android OS
  • Contactless (NFC), chip and magnetic stripe reader





Ideal for: mobile businesses, delivery services, and field sales requiring reliable payment acceptance

Discover Axium DX8000 Portable Pinpad

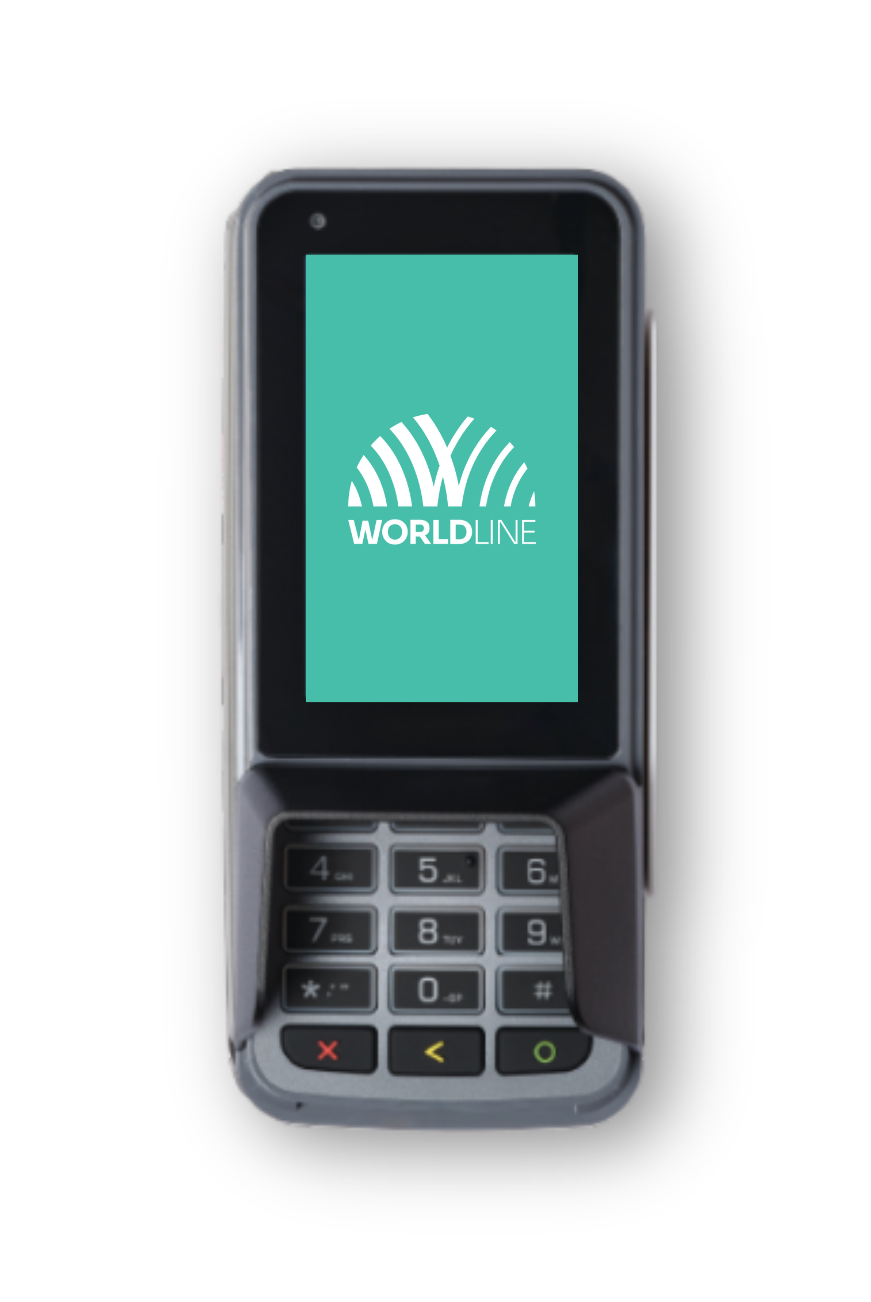

Axium RX5000

Axium RX5000 Pinpad integrated payment terminal

The powerful Android payment terminal


  • Strong processor that enables transactions at maximum speed
  • Discreetly fits into your POS environment thanks to modern design
  • Combines color touch display and physical keyboard in one device
  • Powered by Android OS
  • Contactless (NFC), chip and magnetic stripe reader

Ideal for: businesses with multiple locations and high customer traffic that require robust payment systems

Learn about Axium RX5000 Pinpad

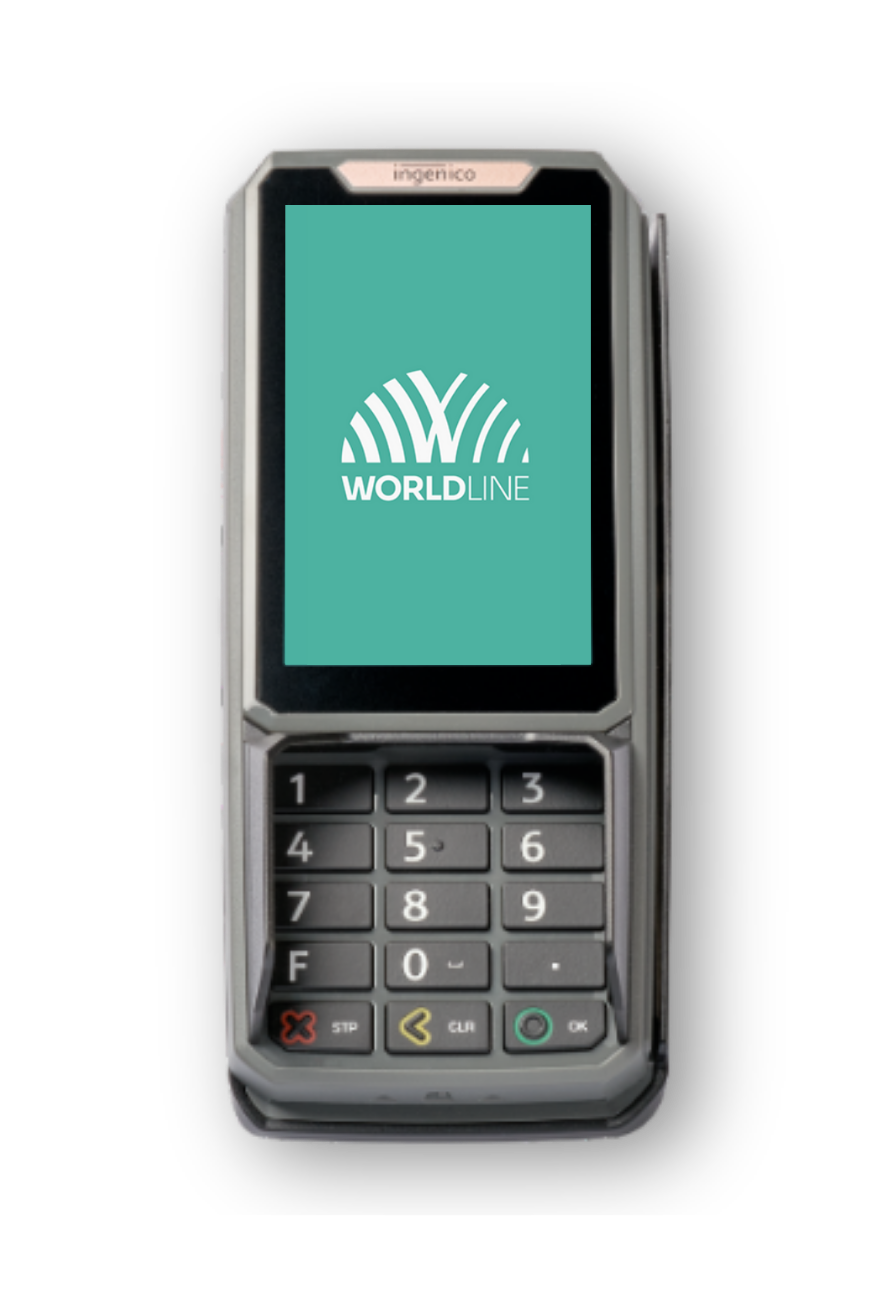

Saturn 1000P

Saturn 1000P Pinpad integrated payment terminal

Intuitive SmartPOS payment terminal


  • Seamless and fast payment transactions
  • Combines color touchscreen and physical keyboard in one device
  • Powered by Android OS
  • Contactless (NFC), chip and magnetic stripe reader





Ideal for: retail stores or businesses looking to upgrade their cash registers with a terminal

Explore Saturn 1000P Pinpad

Saturn 1000F2

Saturn 1000F2 Portable Pinpad integrated payment terminal

Integrated terminal with Android SmartPOS

  • SmartPOS Store from Worldline as well as useful business apps directly available on the terminal
  • Strong battery life, ideal for companies with high transaction volumes
  • Powered by Android OS
  • Contactless (NFC), chip and magnetic stripe reader



Ideal for: Restaurants and hospitality businesses or mobile companies looking for a portable, reliable payment solution

Discover Saturn 1000F2 Portable Pinpad

Link/2500

Link/2500 Portable Pinpad integrated payment terminal

The ultra-lightweight mPOS terminal


  • Portable and flexible to use thanks to WLAN and Bluetooth connection
  • Ideal in combination with tablet cash register apps (iOS/Android)
  • User-friendly interface
  • Contactless (NFC), chip and magnetic stripe reader




Ideal for: large businesses as well as for enterprises looking to provide a seamless shopping experience for their customers

Explore Link/2500 Portable Pinpad

Tap on Mobile

Tap on Mobile Integrated payment terminal

Payments for your point of sale app


  • No payment terminal required
  • Interacts directly with your cash register software app
  • PIN for payments above the contactless limit
  • Acceptance of Visa and Mastercard debit/credit cards (including TWINT) as well as mobile wallets
  • Contactless (NFC)


Ideal for: small businesses that want to accept card payments without additional devices

Explore Tap on Mobile Integrated

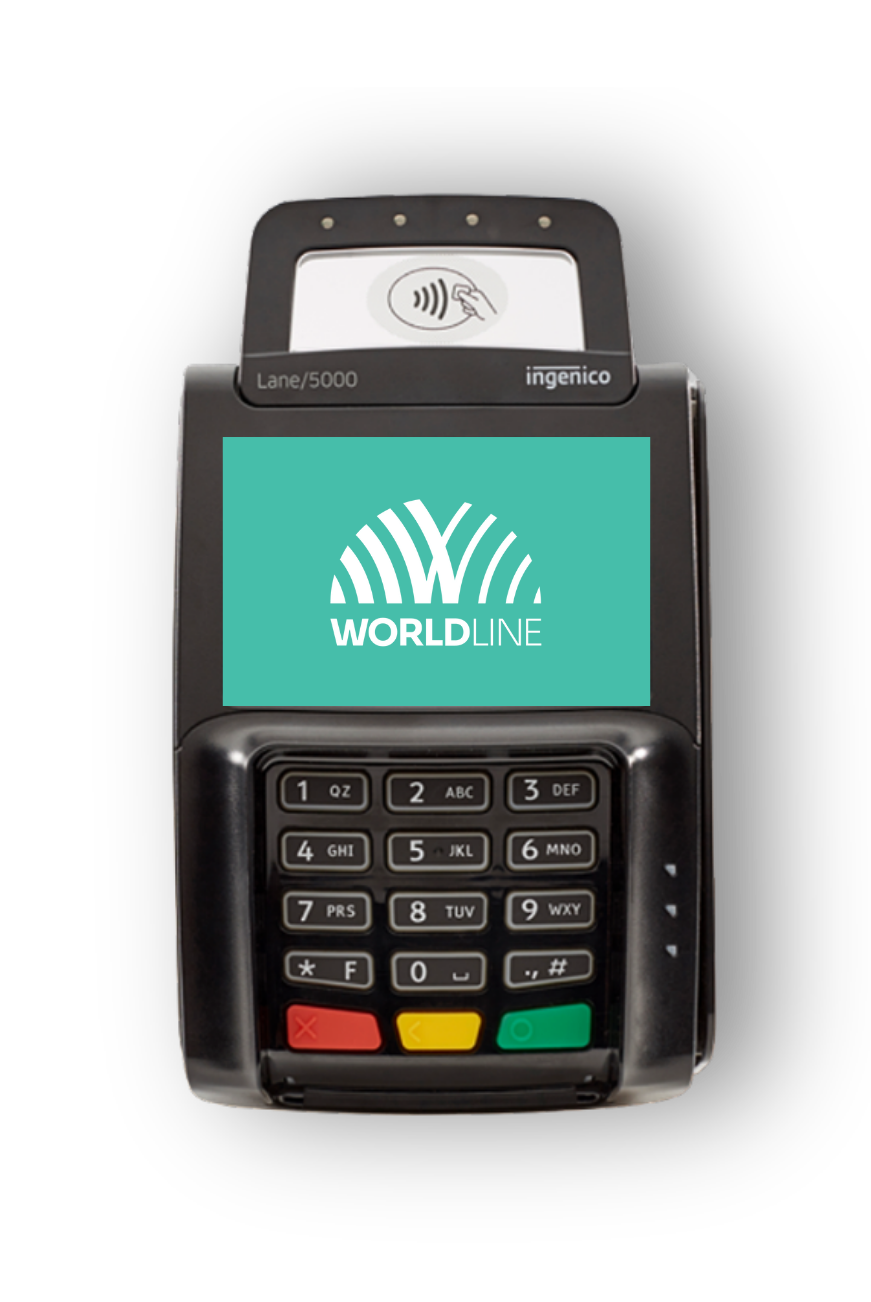

Lane/5000

Lane/5000 Pinpad integrated payment terminal

Terminal with touchscreen and keyboard

  • Fast and secure payment processing
  • Combines color touchscreen and physical keyboard in one device
  • Option for electronic signature capture
  • Contactless (NFC), chip and magnetic stripe reader




Ideal for: wholesale companies, corporations, or gas stations seeking a reliable and practical payment solution

Explore Lane/5000 Pinpad

Compare our integrated payment terminals

Find the ideal integrated payment terminal for your business needs. Compare specifications and features across Worldline’s range of cash register integrated card readers.

Axium EX8000 Portable Pinpad

Axium DX8000 Portable Pinpad

Axium RX5000 Pinpad

Saturn 1000P Pinpad

Saturn 1000F2 Portable Pinpad

Link/2500 Portable Pinpad

Tap on Mobile Integrated

Lane/5000 Pinpad
DIM (L × W × H)

170 × 80,6 × 19 mm

198 × 83 × 62,5 mm

177 x 80 x 22,5 mm

189,2 x 83,9 x 49,4 mm

203,9 × 80 × 55,9 mm

129 x 70 x 17 mm

Depending on the device model

189 x 11 x 48 mm
Weight

290 g

441 g

227 g

362 g

495 g

155 g

Depending on the device model

350 g
Communication

Wi-Fi

Wi-Fi

LAN, Wi-Fi

LAN, Wi-Fi

Wi-Fi

Bluetooth, Wi-Fi

Depending on the device model

LAN
Power supply

Li-ion battery (4040 mAh)
USB-C charging port

Li-ion battery (3350 mAh)
USB-C charging port

External power supply

DC 12V/1A

Li-ion battery

5V 1A,
USB C (1.5 m)

Depending on the device model

External power supply
Display (pixels)

Colour touch display
1440 x 720 px

Colour touch display
1440 × 720 px

Colour touch display
480 x 800 px

Colour touch display
480 x 800 px

Colour touch display
1280 x 720 px

Colour display
240 x 320 px

Depending on the device model

Touch display
480 x 320 px
Screen size

6"

6"

4"

4"

5.5"

2.4"

Depending on the device model

3.5"
Printer

-

Yes

-

-

Yes

-

-

-
Speaker

Yes

Yes

Yes

Yes

Yes

-

-

-
Audio jack

Yes

Yes

Yes

-

Yes

-

-

-
Security certificate

PCI PTS 6.x

PCI PTS 6.x

PCI PTS 6.x

PCI PTS 6.x

PCI PTS 6.x

PCI PTS 5.x

PCI CPoC

PCI PTS 5.x
Cash register connection

TIM

TIM

TIM

TIM

TIM

TIM

Worldline Payment Interface (WPI)

TIM
Operating system

Android 10.0

Android 10.0

Android 11.0

Android 10.0

Android 9.0

-

Android/iOS

-
Card reader

EMV chip
Magnetic stripe
Contactless

EMV chip
Magnetic stripe
Contactless

EMV chip
Magnetic stripe
Contactless

EMV chip
Magnetic stripe
Contactless

EMV chip
Magnetic stripe
Contactless

EMV chip
Magnetic stripe
Contactless

Contactless

EMV chip
Magnetic stripe
Contactless
Accessories

Charging station

Charging station/Charging station with communication module

Mounting pole (required)
PoE option (Power over Ethernet) available

Mounting pole
(Spacepole)

Charging station

-

Depending on the device model

-
Environmental conditions

Operating temperature: –10 °C to 50 °C
Storage temperature: –20 °C to 70 °C
Operating humidity 10% to 90%, non-condensing

Operating temperature: –10 °C to 50 °C
Storage temperature: –20 °C to 70 °C
Operating humidity 10% to 90%, non-condensing

Operating temperature: –10 °C to 50 °C
Storage temperature: –20 °C to 70 °C
Operating humidity 10% to 90%, non-condensing

Operating temperature: –10 °C to 50 °C
Storage temperature: –20 °C to 70 °C
Operating humidity 10% to 90%, non-condensing

Operating temperature: –10 °C to 50 °C
Storage temperature: –20 °C to 70 °C
Operating humidity 10% to 90%, non-condensing

Operating temperature: –20 °C to 55 °C
Operating humidity 0% to 90%, non-condensing

-

-

Discover Axium EX8000 Portable Pinpad

Discover Axium DX8000 Portable Pinpad

Discover Axium RX5000 Pinpad

Discover Saturn 1000P Pinpad

Discover Saturn 1000F2 Portable Pinpad

Discover Link/2500 Portable Pinpad

Discover Tap on Mobile Integrated

Discover Lane/5000 Pinpad

Cash register systems and payment terminals

Together with our partners, we offer a compatible network of cash register systems, POS terminals and digital services – for retail, catering, hotels, service providers and events in Switzerland.

Find out more
Tap to pay on Iphone

Order terminal accessories quickly & easily



From paper rolls to cables: with just a few clicks, everything will be delivered straight to you.

Order accessories now

Frequently asked questions about integrated payment terminals

  • Integrated payment terminals reduce manual entry errors, speed up transactions, sync sales and inventory data, and offer a smoother checkout process. An integration also improves the accuracy of reporting and additionally it improves customer experience.

  • POS integrated terminals speed up checkout by auto-syncing transaction data, eliminating the need to enter amounts twice. This reduces wait times, minimises errors, and enhances customer satisfaction.

  • Yes, many payment systems can integrate with existing tills using compatible interfaces like the Till Integration Module (TIM) from Worldline, providing advanced payment functionality without requiring complete system replacement.

  • Small businesses can choose from cost-effective payment terminals that integrate seamlessly with tablet POS systems on iOS or Android. This flexibility makes it easy to scale as the business grows while keeping costs under control.

  • By combining payments, sales tracking, inventory, and customer data in one system, unified solutions reduce manual tasks, simplify training, and offer real-time insights.

  • It includes hardware-software syncing, automatic transaction posting, real-time data updates, and minimal manual input. A smooth integration ensures efficient workflows and fewer errors.

  • Yes. Enterprise-grade all-in-one payment solutions are engineered for high-volume retail environments, providing fast transaction processing, multi-method payment support, and robust uptime and reporting capabilities.

  • Integrated terminals sync sales with inventory in real time, reducing stock discrepancies. They also generate accurate sales reports, aiding restocking, performance tracking, and forecasting.

Why should you choose an integrated payment terminal from Worldline?

Maximum security

Our POS integrated terminals comply with the Payment Card Industry Data Security Standard (PCI DSS). End-to-End encryption ensures that all transactions are secure. This guarantees maximum security in payment processing.

Seamless payment integration

Reliable and secure integration into your electronic cash register system (ECR) ensures smooth payment processing. Various development environments and programming languages, as well as an understandable API, make integration simple.

Comprehensive payment acceptance

Acceptance of all common credit and debit cards, as well as mobile payment solutions and e-wallets.

Extended battery life

Integrated, portable solutions feature batteries with long-lasting performance and can process hundreds of transactions on a single charge. Special battery management helps further prolong operating times.

How companies become successful with integrated cashless payment terminals

Testimonial from public transportation

Luigi Orlando, Specialist for Control Applications at PostAuto

"The integration of Tap on Mobile has brought us real added value. It is a simple process that benefits both our passengers and our control staff."

- Luigi Orlando, Specialist for Control Applications at PostAuto

Unlock the full journey – read the success story now!

Direct Sales Implementation

bofrost

"Collaborating with the teams from Worldline was very straightforward. Our plans were ambitious, and we didn't have a clear idea of what we could expect from an integrated payment solution. Our drivers previously used various devices, which always posed a challenge for data transmission. Thanks to the terminals and the integration with our app, we were able to reduce the infrastructure while expanding functionality. With good planning and direct communication, the project was implemented in a very short period."

- Guido Cescon, CIO bofrost Italia S.p.A. & Titus Steinegger, Director Supply Chain Management (SCM) bofrost Suisse AG

Discover how they did it – read the full success story!

Integrated POS devices for every industry

Retail

Shorten queues and boost sales by processing payments at lightning speed with no manual input required.

Petrol and energy

Ensure smooth operations across your offering, from transaction processing and fraud prevention to o fleet solution handling.

Restaurants and cafés

Increase table turnover by accepting payments directly at the table with portable card terminals integrated into your POS system.

Automotive sales and repair services

Improve cash flow with integrated terminals directly connected to your POS systems.

Healthcare and pharmacies

Reduce billing costs with instant payment processing via integrated payment terminals.

Comprehensive support for your integrated payment terminals

two men looking at a terminal

Our broad range of service packages ensures smooth payment processing and provides reliable support in every situation. You can count on our professional assistance at all times.

From a basic package to an all-inclusive solution, there’s a suitable option for every business and every scenario. Our large, knowledgeable team is here to support you and ensure that all your questions and issues related to your payment terminal are promptly resolved.

Explore service packages for integrated terminals

Get your integrated payment terminal solution

Our dedicated experts are happy to assist you with any questions or if you're interested in our integrated payment terminals. Fill out the form below to receive personalised recommendations and pricing offers.

* Mandatory fields
MarketingOptin

By submitting this form, I confirm that I have read and understand the terms of use from Worldline, and that Worldline will process my personal data as stated in the privacy policy.

Explore all Worldline payment terminal options
